Vákuum szivattyúk

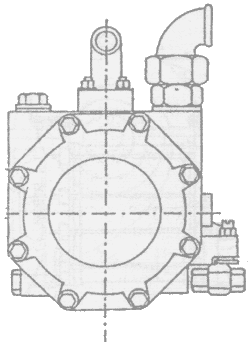

71A


71A
ZOOM

Application

For archieving vacuum in corrosive, noncorrosive and gaseous medium, handling gases and liquids mixture.

Suction diameter

Performance
Q=8,5 ÷ 30
Vacuum=160 ÷ 650
t<= 90
n= 3000 ÷ 3200

100 mm


m3/h
torr
°C
min-1

Constructive features

Single stage
Horizontal
Radially split casing
Starlike impeller

749I


749I
ZOOM
ZOOM

Application

For archieving vacuum in corrosive, noncorrosive and gaseous medium, handling gases and liquids mixture.

Suction diameter

Performance
Q=65 ÷ 220
Vacuum=30 ÷ 600
t<= 100
n= 1450

50 ÷ 65 mm


m3/h
torr
°C
min-1

Constructive features

Single stage
Horizontal
Vacuum pump with liquid ring
Starlike impeller, center line mounted

493L


493L
ZOOM
ZOOM

Application

For archieving vacuum in corrosive, noncorrosive and gaseous medium, handling gases and liquids mixture, hydration, distillation, crystallization, synthesizing and vacuum packing.

Suction diameter

Performance
Q=15 ÷ 2500
Vacuum=30 ÷ 600
t<= 100
n= 730 ÷ 2900

25 ÷ 150 mm

m3/h
torr
°C
min-1

Constructive features

Single or double stage
Horizontal
Vacuum pump with liquid ring
Starlike impeller, center line mounted


Variants
ZOOM
